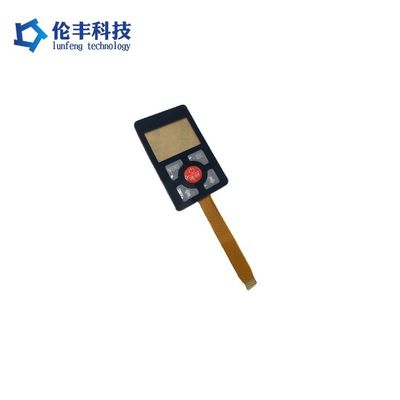

Thickness 03mm Metal Dome Membrane Switch 12 Key Membrane Switch Long Lasting Durability Industrial Control Applications

Product Description:

The Metal Dome Membrane Switch is a high-quality tactile membrane keypad designed to offer reliable and responsive performance in a variety of electronic applications. Engineered with precision, this switch features a 12 key membrane layout that ensures efficient and accurate input, making it ideal for devices that require consistent user interaction and durability.

One of the key highlights of this metal dome tactile switch is its impressive lifespan, rated for up to 1 million cycles. This longevity guarantees that the switch can withstand extensive use without compromising on tactile feedback or performance, making it a cost-effective solution for products expected to endure frequent operation over extended periods.

The switch operates at a voltage of ≤ 35VDC, enabling it to be integrated into a wide range of low voltage electronic devices safely and effectively. This operating voltage range ensures compatibility with many control systems and electronic circuits, providing versatility for various industrial, consumer, and commercial applications.

With a thickness of just 0.3mm, the Metal Dome Membrane Switch offers a slim and compact profile that is perfect for modern, space-conscious designs. Its thin construction does not sacrifice durability or tactile response, allowing manufacturers to maintain sleek product aesthetics without compromising on user experience.

The switch incorporates multiple embossed button shapes, enhancing user interaction by providing distinctive tactile cues for each key. This embossing feature improves accuracy and usability, especially in environments where users rely on touch to identify keys without visual confirmation. The variety of button shapes also adds to the ergonomic design, making it easier to navigate the keypad quickly and efficiently.

At the heart of this product is the metal dome tactile switch mechanism, which is renowned for delivering crisp, audible, and tactile feedback. This metal dome tactile switch technology ensures that each key press is registered with precision, providing users with confidence that their inputs have been recognized. The metal dome design also contributes to the switch’s durability and resistance to wear, maintaining consistent performance throughout its lifecycle.

Whether used in industrial control panels, medical devices, consumer electronics, or security systems, the Metal Dome Membrane Switch stands out as a dependable and responsive solution. Its combination of a 12 key layout, multiple embossed button shapes, and robust metal dome tactile switch technology creates a tactile membrane keypad that balances functionality, durability, and user comfort.

In summary, the Metal Dome Membrane Switch is an excellent choice for any application requiring a reliable, long-lasting, and user-friendly tactile membrane keypad. Its 1 million cycle lifespan, low operating voltage, thin profile, and multiple embossed buttons make it a versatile component that enhances both the functionality and aesthetic appeal of electronic devices. By incorporating this metal dome tactile switch into your product design, you ensure high-quality tactile feedback, durability, and superior user experience.

Technical Parameters:

Applications:

The Metal Dome Membrane Switch, branded as OEM/LF and model number OEM/LF, is a versatile and reliable input device widely utilized across various applications and scenarios. Certified with ISO9001:2015, this metal dome tactile switch guarantees quality and durability, making it an excellent choice for industries requiring dependable tactile feedback and long-lasting performance. With a lifespan of up to 1 million cycles, it is ideal for environments where frequent and precise user interaction is critical.

This tactile membrane keypad is commonly employed in consumer electronics, medical equipment, industrial control panels, and automotive dashboards. Its robust construction, featuring a shield protective spacer and a 1mm connector tail cable, ensures stable electrical connections and resistance to environmental factors, which is essential for harsh or demanding conditions. The 2.54mm pitch design allows for compact and efficient integration into various device layouts without compromising usability or aesthetics.

In industrial settings, the Metal Dome Membrane Switch is perfect for machinery control interfaces, where operators need reliable tactile feedback to confirm input actions swiftly and accurately. Medical devices benefit from the switch’s hygienic and sealed design, facilitating easy cleaning and preventing contamination. Automotive applications leverage its durability and resistance to wear, ensuring consistent performance in vehicle control panels and infotainment systems.

Other common application occasions include home appliances such as microwave ovens, washing machines, and remote controls, where the tactile membrane keypad enhances user experience with its responsive and satisfying touch. The operating voltage of up to 12V DC max allows compatibility with a broad range of electronic circuits, making it adaptable to various power requirements.

OEM/LF offers flexible packaging options, including PE bags, cartons, or customized packaging according to customer requests. The minimum order quantity is 1 piece, with pricing based on design specifications. Delivery time is to be discussed to meet client needs, and payment terms are TT in advance, ensuring smooth and secure transactions.

In summary, the Metal Dome Membrane Switch by OEM/LF is a dependable, high-quality solution for applications demanding tactile feedback, durability, and versatility. Its design and certification make it suitable for a wide array of scenarios, from industrial controls to consumer electronics, providing users with precise and reliable input functionality.

Support and Services:

Our Metal Dome Membrane Switches are designed to provide reliable tactile feedback and long-lasting performance in various applications. For technical support, please ensure that your inquiry includes detailed information about the product model, operating environment, and any issues encountered.

We offer troubleshooting assistance to help diagnose and resolve common issues such as contact bounce, inconsistent tactile response, or connection problems. Our support team can guide you through proper installation procedures, recommended cleaning methods, and environmental considerations to maximize the lifespan of your membrane switch.

In addition to technical support, we provide customization services including graphic overlay design, circuit pattern modifications, and dome material selections tailored to your specific application requirements. Our engineering team can work with you to optimize switch performance and durability based on your unique operational needs.

For optimal results, we recommend adhering to the specified electrical ratings and mechanical actuation forces outlined in the product datasheet. Proper handling and storage of the metal dome membrane switches are also critical to maintaining their functionality and appearance.

We are committed to delivering high-quality products and support to ensure your satisfaction and the successful integration of our Metal Dome Membrane Switches into your devices.
